Scaled flux for a given vector user data. More...

#include <dim_dim_user_data.h>

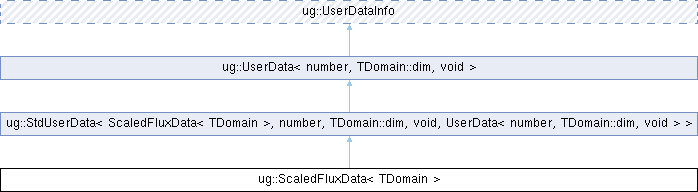

Inheritance diagram for ug::ScaledFluxData< TDomain >:

Public Member Functions
virtual bool	continuous () const
	Indicator functions are discontinuous.

template<int refDim>
void	evaluate (number vValue[], const MathVector< dim > vGlobIP[], number time, int si, GridObject elem, const MathVector< dim > vCornerCoords[], const MathVector< refDim > vLocIP[], const size_t nip, LocalVector u, const MathMatrix< refDim, dim > *vJT=NULL) const
	Evaluator.

void	operator() (number &vValue, const MathVector< dim > &globIP, number time, int si) const
	This function should not be used.

void	operator() (number vValue[], const MathVector< dim > vGlobIP[], number time, int si, const size_t nip) const
	This function should not be used.

virtual bool	requires_grid_fct () const
	Returns true to get the grid element in the evaluation routine.

	ScaledFluxData (SmartPtr< domain_type > spDomain, SmartPtr< UserData< number, dim, void > > spScalData, SmartPtr< UserData< vec_type, dim, void > > spVecData)
	constructor

	ScaledFluxData (SmartPtr< domain_type > spDomain, SmartPtr< UserData< number, dim, void > > spScalData, SmartPtr< UserData< vec_type, dim, void > > spVecData, const char *ss_names)
	constructor

Public Member Functions inherited from ug::StdUserData< ScaledFluxData< TDomain >, number, TDomain::dim, void, UserData< number, TDomain::dim, void > >
virtual void	operator() (number vValue[], const MathVector< dim > vGlobIP[], number time, int si, GridObject elem, const MathVector< dim > vCornerCoords[], const MathVector< 1 > vLocIP[], const size_t nip, LocalVector u, const MathMatrix< 1, dim > *vJT=NULL) const

virtual void	operator() (number vValue[], const MathVector< dim > vGlobIP[], number time, int si, GridObject elem, const MathVector< dim > vCornerCoords[], const MathVector< 2 > vLocIP[], const size_t nip, LocalVector u, const MathMatrix< 2, dim > *vJT=NULL) const

virtual void	operator() (number vValue[], const MathVector< dim > vGlobIP[], number time, int si, GridObject elem, const MathVector< dim > vCornerCoords[], const MathVector< 3 > vLocIP[], const size_t nip, LocalVector u, const MathMatrix< 3, dim > *vJT=NULL) const

Public Member Functions inherited from ug::UserData< number, TDomain::dim, void >
int	get_dim () const
	returns dimension

virtual void	operator() (number &value, const MathVector< dim > &globIP, number time, int si, Vertex *vrt) const
	returns a value at a vertex

std::string	type () const
	returns type of data as string (e.g. "Number", "Vector", "Matrix")

void	operator() (number &value, const MathVector< dim > &globIP, number time, int si, GridObject elem, const MathVector< dim > vCornerCoords[], const MathVector< 1 > &locIP, LocalVector u) const

void	operator() (number &value, const MathVector< dim > &globIP, number time, int si, GridObject elem, const MathVector< dim > vCornerCoords[], const MathVector< 2 > &locIP, LocalVector u) const

void	operator() (number &value, const MathVector< dim > &globIP, number time, int si, GridObject elem, const MathVector< dim > vCornerCoords[], const MathVector< 3 > &locIP, LocalVector u) const

Public Member Functions inherited from ug::UserDataInfo
const FunctionGroup &	function_group () const
	Function Group of functions.

const FunctionIndexMapping &	map () const
	get function mapping

size_t	num_fct () const
	number of functions this export depends on

const char *	obj_name ()
	gets the name of the object (s. the field m_objName)

virtual void	set_function_pattern (ConstSmartPtr< FunctionPattern > fctPatt)
	sets the function pattern for a possibly needed grid function

void	set_obj_name (const char *name)
	sets the name of the object (s. the field m_objName)

virtual	~UserDataInfo ()
	virtual destructor

Private Types
typedef TDomain	domain_type
	the domain type

typedef TDomain::grid_type	grid_type
	the grid type

typedef MathVector< dim >	vec_type
	the original data type

Private Attributes
SmartPtr< domain_type >	m_spDomain
	the domain

SmartPtr< UserData< number, dim, void > >	m_spScalData
	the scaling data

SmartPtr< UserData< vec_type, dim, void > >	m_spVecData
	the original vector field data

SubsetGroup	m_ssGrp
	the subset group for the inner part

Static Private Attributes
static const int	dim = TDomain::dim
	the world dimension

Additional Inherited Members
Public Types inherited from ug::UserData< number, TDomain::dim, void >
typedef number	data_type

typedef void	return_type

Protected Member Functions inherited from ug::StdUserData< ScaledFluxData< TDomain >, number, TDomain::dim, void, UserData< number, TDomain::dim, void > >
ScaledFluxData< TDomain > &	getImpl ()
	access to implementation

const ScaledFluxData< TDomain > &	getImpl () const
	const access to implementation

Protected Attributes inherited from ug::UserDataInfo
FunctionGroup	m_fctGrp
	functions the data depends on

FunctionIndexMapping	m_map
	Mapping for import fct.

SmartPtr< char >	m_objName
	This field is used mainly for debugging: One can assign a name to the object to identify it when running.

Detailed Description

template<typename TDomain>
class ug::ScaledFluxData< TDomain >

Scaled flux for a given vector user data.

This class implements the UserData for evaluation of the flux of a vector field computed by the other user data object. The flux is evaluation only for WDim-1-dimensional subsets - sides of WDim-dimensional elements. It is scaled by a furthe (scalar) UserData.

ToDo: Note that the LocalVector provided for the evaluate function is not properly used. Thus, the passed UserData objects should not use it.

Member Typedef Documentation

◆ domain_type

template<typename TDomain >

typedef TDomain ug::ScaledFluxData< TDomain >::domain_type

private

the domain type

◆ grid_type

template<typename TDomain >

typedef TDomain::grid_type ug::ScaledFluxData< TDomain >::grid_type

private

the grid type

◆ vec_type

template<typename TDomain >

typedef MathVector<dim> ug::ScaledFluxData< TDomain >::vec_type

private

the original data type

Constructor & Destructor Documentation

◆ ScaledFluxData() [1/2]

template<typename TDomain >

ug::ScaledFluxData< TDomain >::ScaledFluxData	(	SmartPtr< domain_type >	spDomain,
		SmartPtr< UserData< number, dim, void > >	spScalData,
		SmartPtr< UserData< vec_type, dim, void > >	spVecData,
		const char *	ss_names
	)

inline

constructor

Parameters

spDomain	the domain
spScalData	the scaling data
spVecData	the original vector field data
ss_names	the subsets

References ug::SubsetGroup::add(), ug::SubsetGroup::clear(), ug::ScaledFluxData< TDomain >::m_ssGrp, ug::RemoveWhitespaceFromString(), ug::TokenizeString(), and UG_CATCH_THROW.

◆ ScaledFluxData() [2/2]

template<typename TDomain >

ug::ScaledFluxData< TDomain >::ScaledFluxData	(	SmartPtr< domain_type >	spDomain,
		SmartPtr< UserData< number, dim, void > >	spScalData,
		SmartPtr< UserData< vec_type, dim, void > >	spVecData
	)

inline

constructor

Parameters

spDomain	the domain
spScalData	the scaling data
spVecData	the original vector field data

Member Function Documentation

◆ continuous()

template<typename TDomain >

virtual bool ug::ScaledFluxData< TDomain >::continuous ( ) const

inlinevirtual

Indicator functions are discontinuous.

Implements ug::UserData< number, TDomain::dim, void >.

◆ evaluate()

template<typename TDomain >

template<int refDim>

void ug::ScaledFluxData< TDomain >::evaluate	(	number	vValue[],
		const MathVector< dim >	vGlobIP[],
		number	time,
		int	si,
		GridObject *	elem,
		const MathVector< dim >	vCornerCoords[],
		const MathVector< refDim >	vLocIP[],
		const size_t	nip,
		LocalVector *	u,
		const MathMatrix< refDim, dim > *	vJT = `NULL`
	)		const
